LN Series Professional Snow Plow Blades
Marchesi F.lli snow blades are designed for intensive use on agricultural tractors and construction machinery. Each unit is constructed with high-strength steel to ensure structural stability and thorough road clearance, protecting the integrity of the tractor. Range and Configurations The LN series is designed to cover various operating widths, ensuring maximum roadway coverage: LN 280: Width 2800 mm – Ideal for secondary roads and farmyards. LN 320: Width 3200 mm – Reinforced version for main roads. LN 350: Width 3500 mm – Maximum operating capacity for large surfaces. Construction Features Independent Segment Structure: The blade is equipped with a spring safety system that allows only the sector affected by the impact to fold, ensuring continuous operation and protecting the frame. Discharge Geometry: Optimized blade angle to facilitate lateral snow discharge, reducing friction and fuel consumption. Interchangeable Blades: We use highly resistant, wear-resistant steel blades that are easily replaceable to maintain maximum clearing efficiency. Safety and Approval CE Compliance: Product manufactured in accordance with Machinery Directive 2006/42/EC. Testing Support: We provide the technical documentation needed to update the vehicle registration document, ensuring full compliance with road traffic regulations.
CEREAL COMBINE HARVESTING
Harvesting machines
Claas technology for all terrain conditions.
Our fleet includes 5 Claas combine harvesters , models chosen to operate reliably from the plains to the hills:
Claas Lexion 600
Claas Lexion 750 Montana
Claas Trion 540 Montana 4
Claas Lexion 560
Claas Lexion 570
We constantly invest in innovation, equipping almost all of our vehicles with assisted guidance systems. This allows us to always utilize the full width of the cutterbar, carefully harvesting every part of the field and eliminating waste.
Sales and repairs
agricultural machinery
Internal review and tuning.
At Marchesi F.lli, every machine we offer first passes through our workshop. We don't just deliver the vehicle: we perform mechanical, hydraulic, and electronic tuning based on our firsthand experience in repairs and conversions.
Mechanical Expertise: We apply the technical knowledge gained through years of specialized assistance and mechanical construction to every vehicle we sell.
Operational Control: Each machine is tested and prepared to ensure it is efficient and ready to work from day one in the field.
Workshop Check: We personally inspect every critical component before delivery. Our workshop ensures that the vehicle meets the customer's exact needs.
Construction and Installation of Protective Frames
Marchesi F.lli snow blades are designed for intensive use on agricultural tractors and construction machinery. Each unit is constructed with high-strength steel to ensure structural stability and thorough road clearance, protecting the integrity of the tractor. Range and Configurations The LN series is designed to cover various operating widths, ensuring maximum roadway coverage: LN 280: Width 2800 mm – Ideal for secondary roads and farmyards. LN 320: Width 3200 mm – Reinforced version for main roads. LN 350: Width 3500 mm – Maximum operating capacity for large surfaces. Construction Features Independent Segment Structure: The blade is equipped with a spring safety system that allows only the sector affected by the impact to fold, ensuring continuous operation and protecting the frame. Discharge Geometry: Optimized blade angle to facilitate lateral snow discharge, reducing friction and fuel consumption. Interchangeable Blades: We use highly resistant, wear-resistant steel blades that are easily replaceable to maintain maximum clearing efficiency. Safety and Approval CE Compliance: Product manufactured in accordance with Machinery Directive 2006/42/EC. Testing Support: We provide the technical documentation needed to update the vehicle registration document, ensuring full compliance with road traffic regulations.

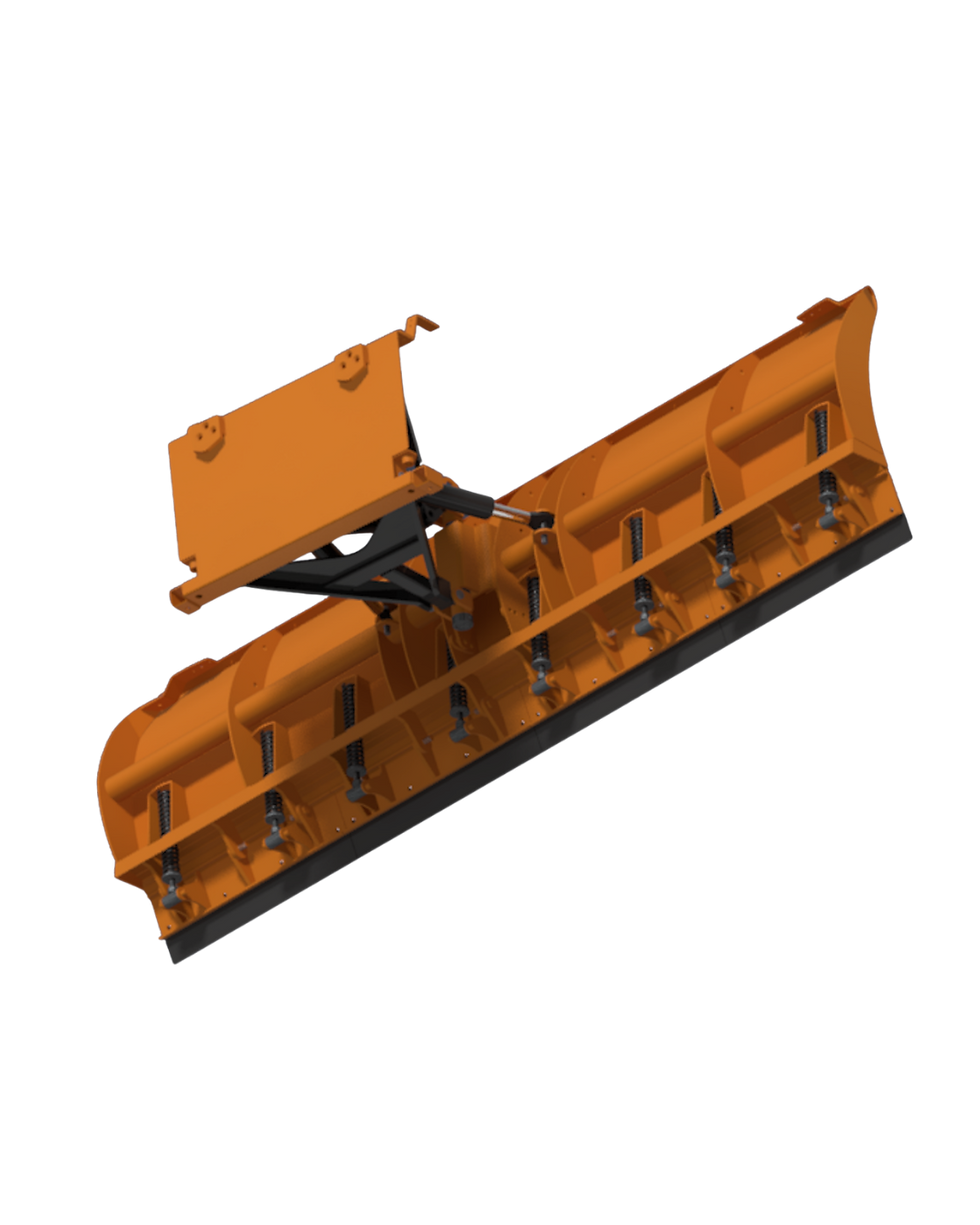

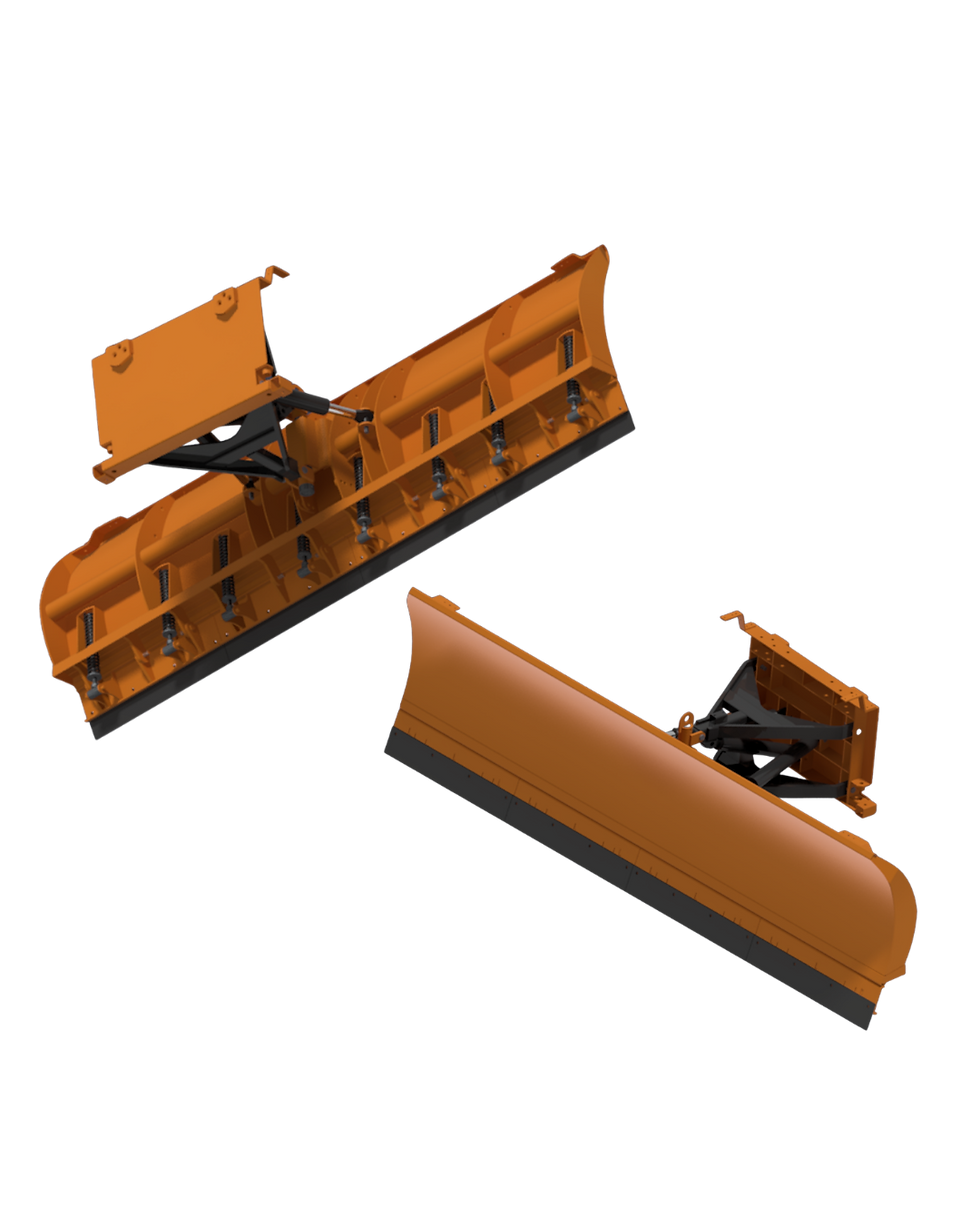

LN Series Professional Snow Plow Blades
Marchesi F.lli snow blades are designed for intensive use on agricultural tractors and construction machinery. Each unit is constructed of high-strength steel to ensure structural stability and thorough road cleaning, protecting the integrity of the tractor.
Range and Configurations
The LN series is developed to cover different operating widths, ensuring maximum roadway coverage:
LN 280: Width 2800 mm – Ideal for secondary roads and company spaces.
LN 320: Width 3200 mm – Reinforced version for main roads.
LN 350: Width 3500 mm – Maximum operating capacity for large surfaces.
Construction Features
Independent Sector Structure: The knife is equipped with a spring safety system that allows only the sector affected by the impact to fold, ensuring continuity of work and protection of the frame.
Discharge Geometry: Optimized blade angle to favor the lateral exit of the snow, reducing friction and fuel consumption of the tractor.
Interchangeable Cutting Edges: We mount high-hardness, wear-resistant steel knives that are easily replaceable to always maintain maximum cleaning efficiency.
Safety and Approval
CE Conformity: Product built in accordance with Machinery Directive 2006/42/EC.
Testing Support: We provide the technical documentation needed to update your vehicle's registration certificate, ensuring full compliance with road traffic regulations.

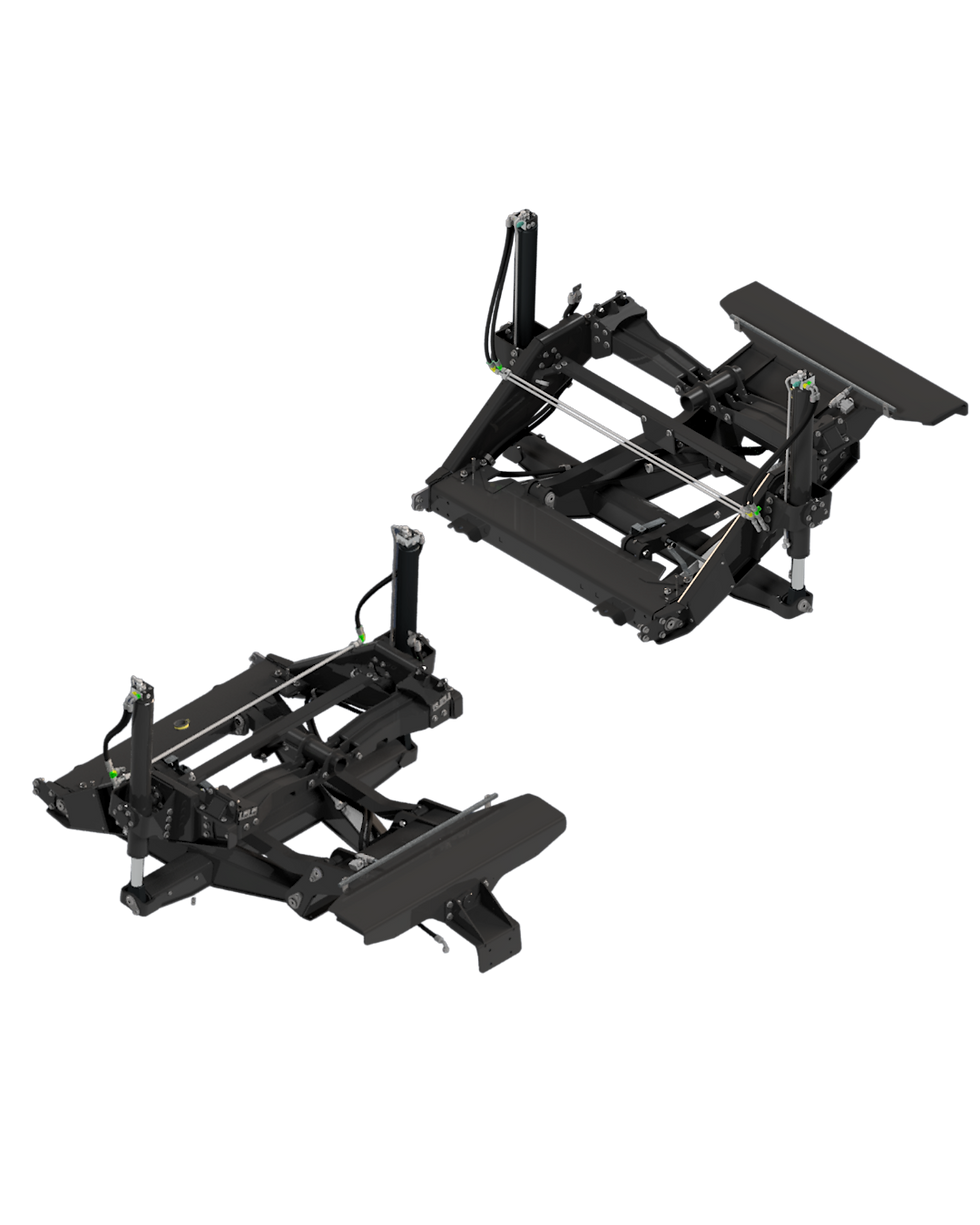

Rear Lifts
for ClAAS Combine Harvesters
for Trion and Lexion
Our many years of experience in the field of agricultural mechanization allows us to design, test and market, under authorization from the manufacturer CLAAS, our rear lifts for combine harvesters.
We ensure constant quality control of every single process, taking care of every stage to offer reliable products that improve machine performance on hillsides. Our goal is substance : concrete solutions to increase efficiency and business in the field.
Approval is issued directly by the manufacturer.
The system ensures constant control of the machine, allowing safe operation on field slopes of up to 30% uphill and 10% downhill.
Lightness and strength: The use of high-strength steels reduces the overall weight, without sacrificing the
robustness of our components.
Intelligent Engineering: Unlike systems currently on the market, our solution features a bolted attachment to the machine, ensuring simplified assembly.
High-quality components: All electronic and hydraulic components are designed and tested to meet the rigorous standards required by the manufacturer. The use of lifting cylinders, integrated check valves, and proportional control valves ensure smooth, linear movements, preventing adjustment changes during operation.
Easy Installation: The kit is designed for quick assembly. If installation is not performed at our facility, the package is shipped complete with technical instructions for self-assembly by an authorized workshop.
Frame Construction and Installation
of Protection
Technical adaptation and certified safety.
We manufacture and install rollover protection frames designed in accordance with INAIL (formerly ISPESL) guidelines . Each structure is designed to ensure effective operator protection and tractor compliance in accordance with Legislative Decree 81/08.
What we actually do:
Specialized Construction: We produce 2-post arches in fixed or foldable versions and with 4 uprights,
We use only steel and certified bolts to ensure maximum structural strength in all working conditions.
Custom Adaptability: We make frames for the main tractor models (Fiat, Landini, Same, Lamborghini, Massey Ferguson and others).
Mechanical Assembly: Installation performed on the structural attachment points of the machine to ensure stability and maximum mechanical strength.
Document Management: Upon completion of each installation, we issue the Declaration of Conformity required by INAIL guidelines. This document certifies that both the chassis and assembly comply with legal standards; it must be retained along with the vehicle registration document to certify the vehicle's full compliance during inspections.
Our solutions:
We apply the different configurations provided for by the Guidelines based on operational needs:
Rear Arches (Fixed or Folding)
Folding Front Arches
Tracked chassis
CEREAL COMBINE HARVESTING
Harvesting machines
Claas technology for all terrain conditions.
Our fleet includes 5 Claas combine harvesters , models chosen to operate reliably from the plains to the hills:
Claas Lexion 600
Claas Lexion 750 Montana
Claas Trion 540 Montana 4
Claas Lexion 560
Claas Lexion 570
We constantly invest in innovation, equipping almost all of our vehicles with assisted guidance systems. This allows us to always utilize the full width of the cutterbar, carefully harvesting every part of the field and eliminating waste.
Sales and repairs
agricultural machinery
Internal review and tuning.
At Marchesi F.lli, every machine we offer first passes through our workshop. We don't just deliver the vehicle: we perform mechanical, hydraulic, and electronic tuning based on our firsthand experience in repairs and conversions.
Mechanical Expertise: We apply the technical knowledge gained through years of specialized assistance and mechanical construction to every vehicle we sell.
Operational Control: Each machine is tested and prepared to ensure it is efficient and ready to work from day one in the field.
Workshop Check: We personally inspect every critical component before delivery. Our workshop ensures that the vehicle meets the customer's exact needs.
